VETS 335 HMPE Mooring Lines - 4 Strand

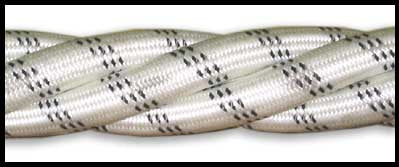

The VETS 335 is a four strand, right regular lay constructed rope. Each strand consists of a load bearing Spectra 1000 core. The core is protected from abraision by a non-load bearing, braided polyester and DuPontª Kevlar¨ jacket.

Spectra floats, and is pound for pound ten times stronger than steel. The VETS 335 has a designed safety performance factor specifically to reduce "recoil". The VETS 335 is an excellent alternative to steel in Heavy Marine applications.

Navy VETS 335 System:
Length:200' eye-to-eye
Eyes: Soft, 6' each
Chafe gear: Both eyes and moveable chafe on body
Tattletales

Part Minimum Break Strength (lbs.) Nominal Diameter (inches) Approx. Weight (lb./100 ft.)
Number
335-3 140,000 1/1/2002 49
335-4 180,000 1/5/2008 55
335-5 230,000 2 62
335-6 300,000 2/1/2004 75
335-7 360,000 2/3/2008 98
335-8 405,000 2/5/2008 128
335-9 510,000 2/3/2004 168
335-10 660,000 3/1/2004 211

*When requesting a quote please specify the following:

Product Name

VETS 335-3

VETS 335-4

VETS 335-5

VETS 335-6

VETS 335-7

VETS 335-8

VETS 335-9

VETS 335-10

Quantity Length

Eye to Eye or End to End

Eye Size

Eye 1:

Eye 2:

Chafe Gear in Eyes

Eye 1: Yes or No

Eye 2: Yes or No

Any Additional Specifications
