GTM Composite Double Braid Ropes

Email for quote

Email us to receive a custom quote

An agent will get back to you within 24hrs.

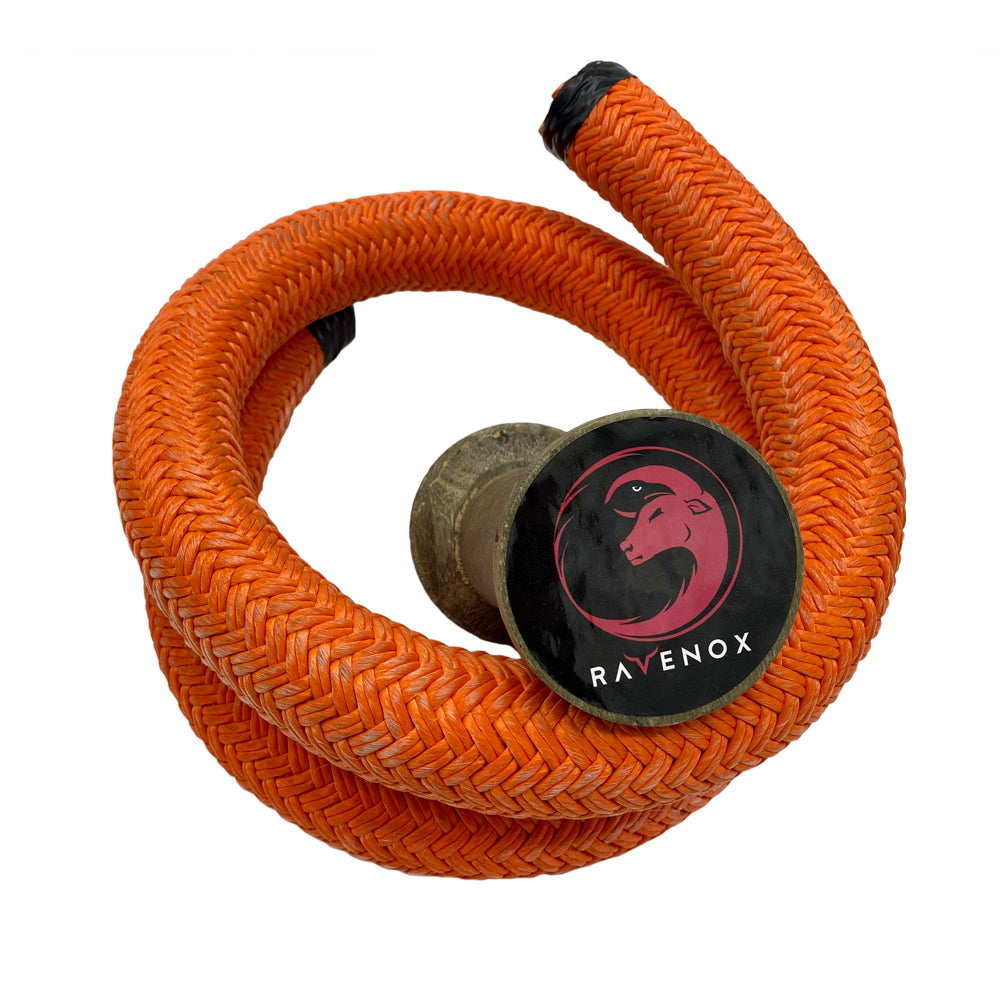

GTM Composite Double Braid ropes have very high strength, are firm with a round profile, and have extremely low stretch. These durable, torque-free synthetic ropes are excellent for replacing steel wire rope in winch applications and are designed to withstand drum compression. GTM ropes can be used in multiple applications such as vessel mooring lines for Articulated Tug & Barges (ATB’s), Gilson winch lines used in commercial fishing, as well as helicopter long lines.

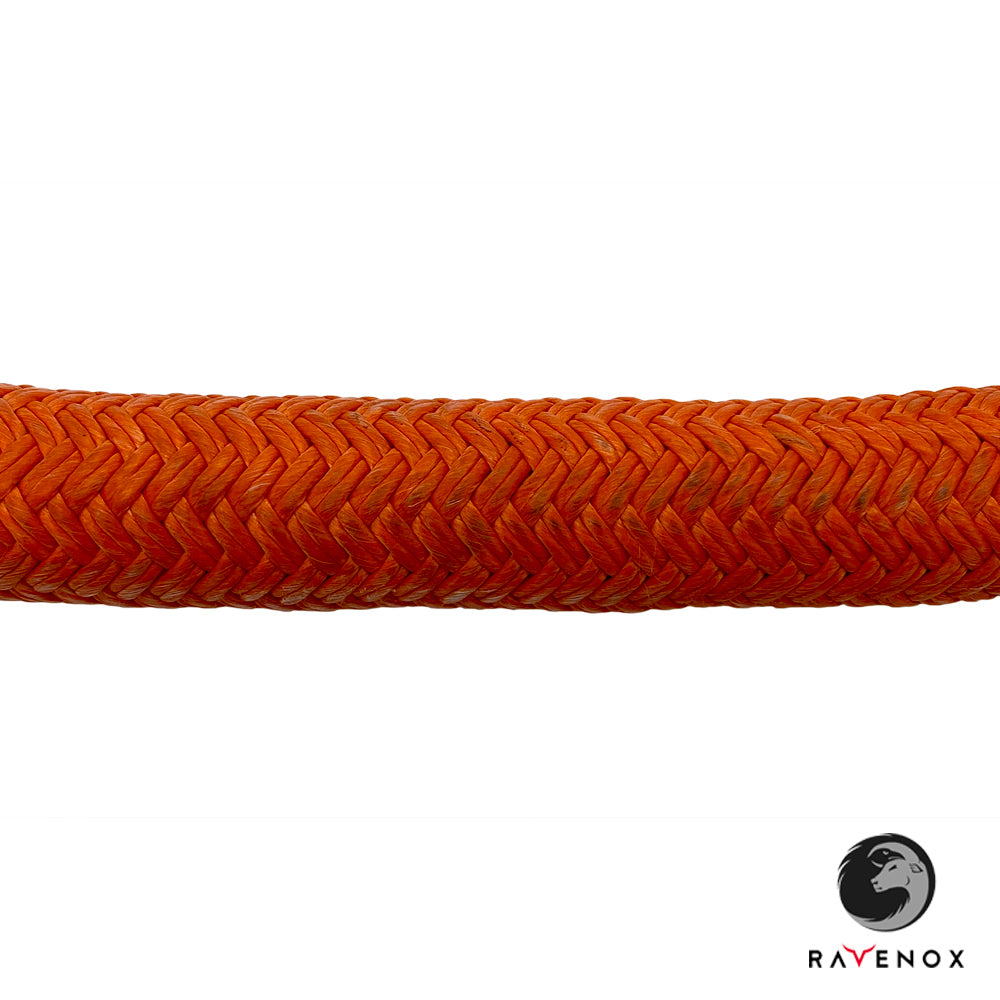

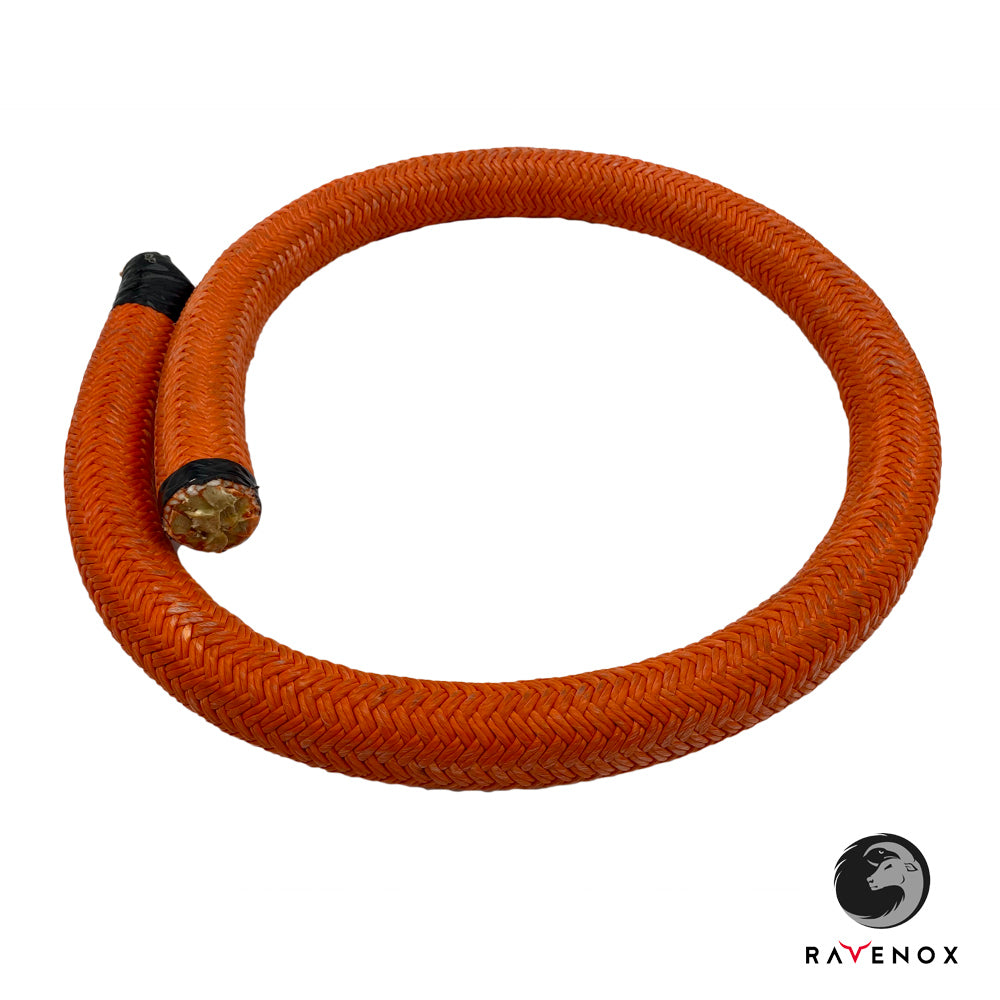

GTM Double Braid ropes are constructed with a braided Plasma® HMPE fiber core. This core is encased in a tightly braided jacket of a new generation HMPE fiber that offers the highest abrasion and cut resistance durability.* The final construction of core and cover work in balance to provide excellent service life.

GTM braided rope standard color is orange, but is available with a polyurethane finish in clear or any of five additional colors; black, yellow, red, blue or green.

Benefits / Features

  • Highest Strength
  • Lowest Stretch
  • Low Creep
  • Firm Hand
  • Torque Free

Applications

  • Vessel Mooring Lines
  • Winch Lines
  • Tug Mainlines
  • Tug Pendants
  • Recreational Vehicle Winch Lines
  • Utility Winch and Pulling Lines
  • Theatrical Rigging

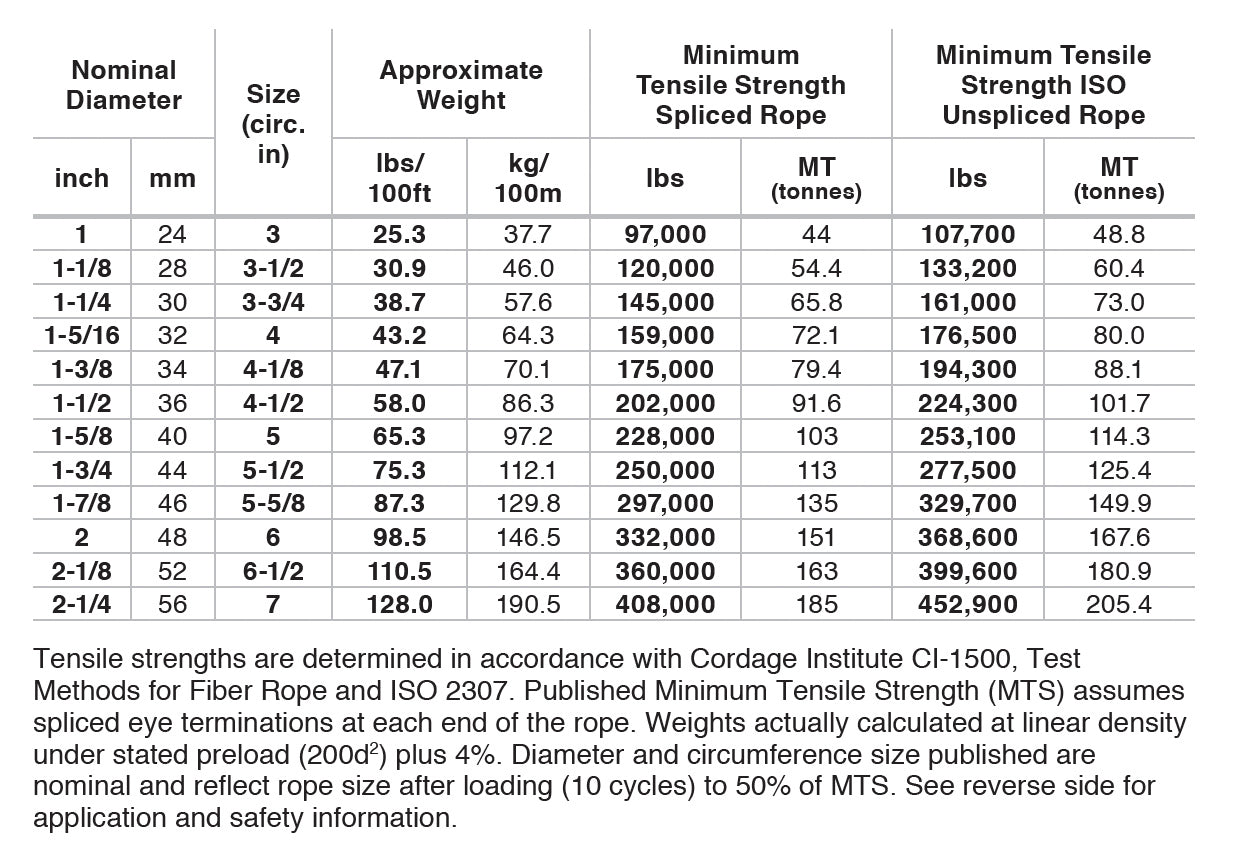

Tech Sheet - GTM Composite Double Braid

Nominal Dia. (mm)  Nominal Dia. (in)

Rope Circ.

Approx Weight lbs./100 ft

Approx Weight kg / 100m

Min Tensile Strength Spliced Rope (lbs.)

Min Tensile Strength Spliced Rope MT (tonnes)

Min Tensile Strength ISO Unspliced Rope (lbs.)

Min Tensile Strength ISO Unspliced Rope MT (tonnes)

24 mm 1" 3" 25.3 37.7 97,000 44 107,700 48.8
28 mm 1-1/8" 3-1/2" 30.9 46.0 120,000 54.4 133,200 60.4
30 mm 1-1/4" 3-3/4" 38.7 57.6 145,000 65.8 161,000 73.0
32 mm 1-5/16" 4" 43.2 64.3 159,000 72.1 176,500 80.0
34 mm 1-3/8" 4-1/8" 47.1 70.1 175,000 79.4 194,300 88.1
36 mm 1-1/2" 4-1/2" 58.0 86.3 202,000 91.6 224,300 101.7
40 mm 1-5/8" 5" 65.3 97.2 228,000 103 253,100 114.3
44 mm 1-3/4" 5-1/2" 75.3 112.1 250,000 113 277,500 125.4
46 mm 1-7/8" 5-5/8" 87.3 129.8 297,000 135 329,700 149.9
48 mm 2" 6" 98.5 146.5 332,000 151 368,600 167.6
52 mm 2-1/8" 6-1/2" 110.5 164.4 360,000 163 399,600 180.9
56 mm 2-1/4" 7" 128.0 190.5 408,000 185 452,900 205.4
Tensile strengths are determined in accordance with Cordage Institute CI-150 Test Methods for Fiber Rope and ISO 2307. Published Minimum Tensile Strength (MTS) assumes spliced eye terminations at each end of the rope. Weights actually calculated at linear density under stated preload (200d2) plus 4%. Diameter and circumference size published are nominal and reflect rope size after loading (10 cycles) to 50% of MTS.

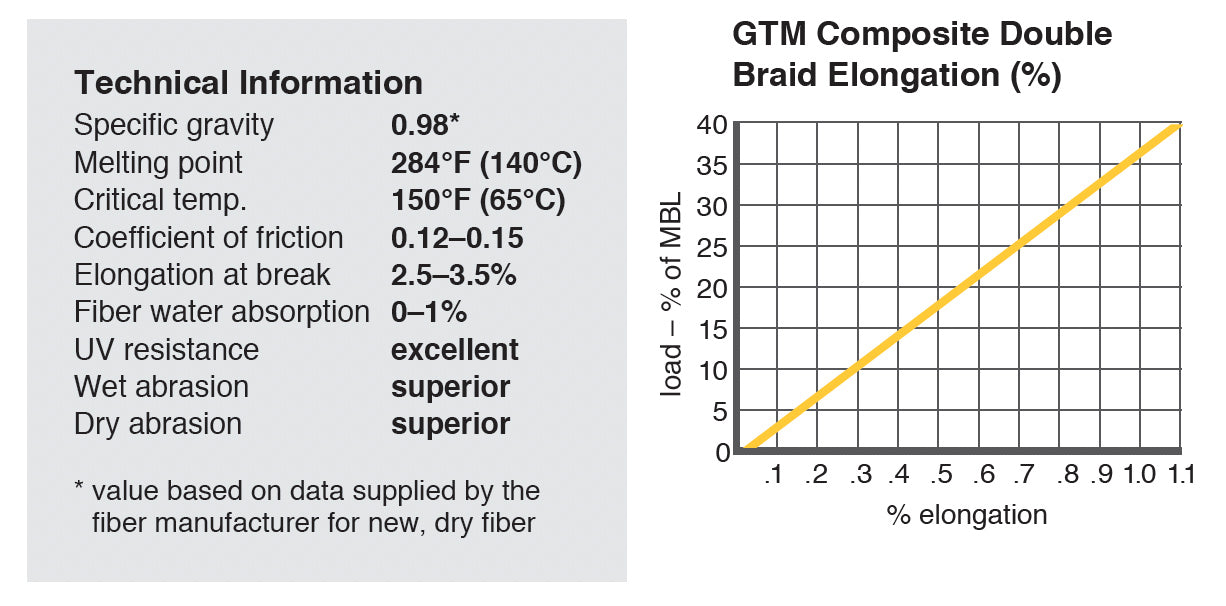

Ravenox GTM Composite Double Braid Ropes Technical Info & Elongation

Description

GTM Composite Double Braid ropes have very high strength, are firm with a round profile, and have extremely low stretch. These durable, torque-free synthetic ropes are excellent for replacing steel wire rope in winch applications and are designed to withstand drum compression. GTM ropes can be used in multiple applications such as vessel mooring lines for Articulated Tug & Barges (ATB’s), Gilson winch lines used in commercial fishing, as well as helicopter long lines.

GTM Double Braid ropes are constructed with a braided Plasma® HMPE fiber core. This core is encased in a tightly braided jacket of a new generation HMPE fiber that offers the highest abrasion and cut resistance durability.* The final construction of core and cover work in balance to provide excellent service life.

GTM braided rope standard color is orange, but is available with a polyurethane finish in clear or any of five additional colors; black, yellow, red, blue or green.

Benefits / Features

  • Highest Strength
  • Lowest Stretch
  • Low Creep
  • Firm Hand
  • Torque Free

Applications

  • Vessel Mooring Lines
  • Winch Lines
  • Tug Mainlines
  • Tug Pendants
  • Recreational Vehicle Winch Lines
  • Utility Winch and Pulling Lines
  • Theatrical Rigging

Specifications

Tech Sheet - GTM Composite Double Braid

Nominal Dia. (mm)  Nominal Dia. (in)

Rope Circ.

Approx Weight lbs./100 ft

Approx Weight kg / 100m

Min Tensile Strength Spliced Rope (lbs.)

Min Tensile Strength Spliced Rope MT (tonnes)

Min Tensile Strength ISO Unspliced Rope (lbs.)

Min Tensile Strength ISO Unspliced Rope MT (tonnes)

24 mm 1" 3" 25.3 37.7 97,000 44 107,700 48.8
28 mm 1-1/8" 3-1/2" 30.9 46.0 120,000 54.4 133,200 60.4
30 mm 1-1/4" 3-3/4" 38.7 57.6 145,000 65.8 161,000 73.0
32 mm 1-5/16" 4" 43.2 64.3 159,000 72.1 176,500 80.0
34 mm 1-3/8" 4-1/8" 47.1 70.1 175,000 79.4 194,300 88.1
36 mm 1-1/2" 4-1/2" 58.0 86.3 202,000 91.6 224,300 101.7
40 mm 1-5/8" 5" 65.3 97.2 228,000 103 253,100 114.3
44 mm 1-3/4" 5-1/2" 75.3 112.1 250,000 113 277,500 125.4
46 mm 1-7/8" 5-5/8" 87.3 129.8 297,000 135 329,700 149.9
48 mm 2" 6" 98.5 146.5 332,000 151 368,600 167.6
52 mm 2-1/8" 6-1/2" 110.5 164.4 360,000 163 399,600 180.9
56 mm 2-1/4" 7" 128.0 190.5 408,000 185 452,900 205.4
Tensile strengths are determined in accordance with Cordage Institute CI-150 Test Methods for Fiber Rope and ISO 2307. Published Minimum Tensile Strength (MTS) assumes spliced eye terminations at each end of the rope. Weights actually calculated at linear density under stated preload (200d2) plus 4%. Diameter and circumference size published are nominal and reflect rope size after loading (10 cycles) to 50% of MTS.

Ravenox GTM Composite Double Braid Ropes Technical Info & Elongation
