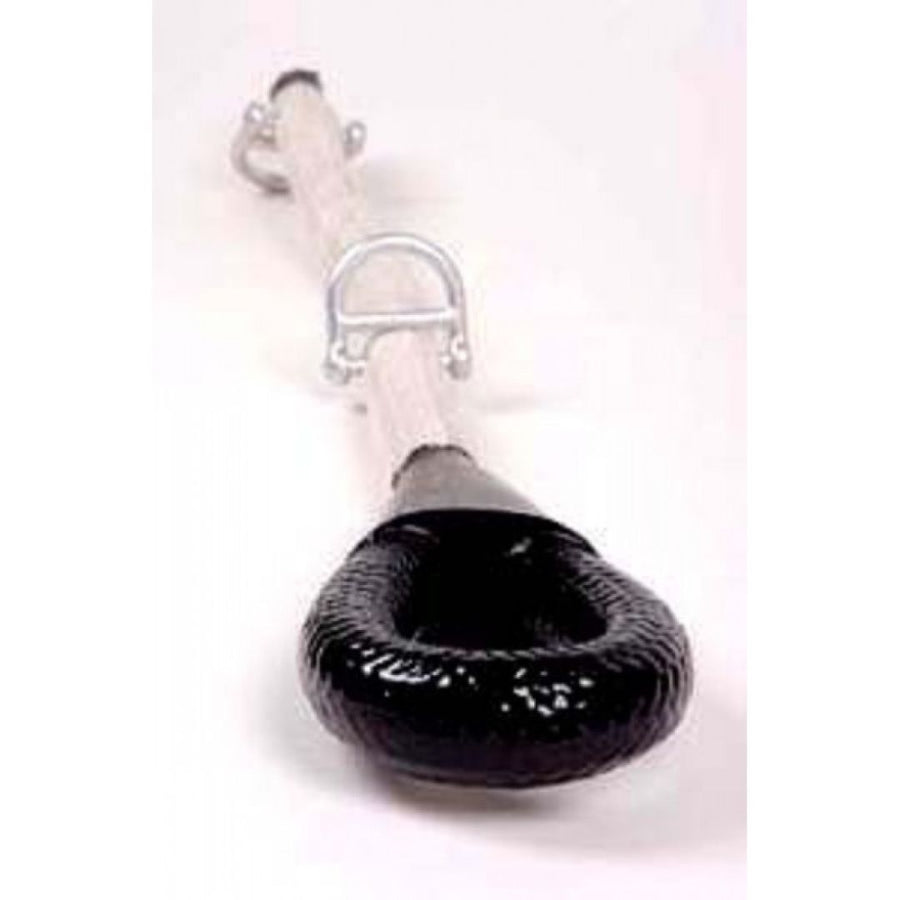

White SPIE rope coiled and ready for use, showing the durable construction and 10 D-ring attachment points for personnel extraction. (8745383624941)
U.S. Marines suspended on a SPIE rope under a helicopter, demonstrating a fast and efficient extraction operation in action. (8745383624941)

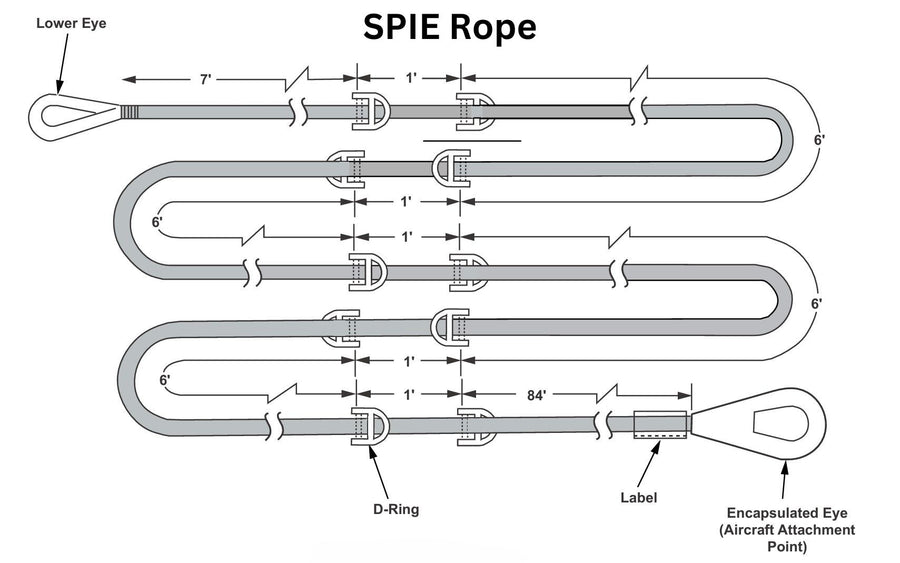

Detailed diagram of a SPIE rope, highlighting the positions of D-rings and the tapered eye splices for secure helicopter attachment. (8745383624941)
WET SPIE extraction of Marines from the water, showcasing the SPIE rope's capability for maritime extraction operations. (8745383624941)
U.S. Marines in camouflage with SPIE rope over their shoulders, fully equipped and waiting for extraction, demonstrating readiness and versatility. (8745383624941)

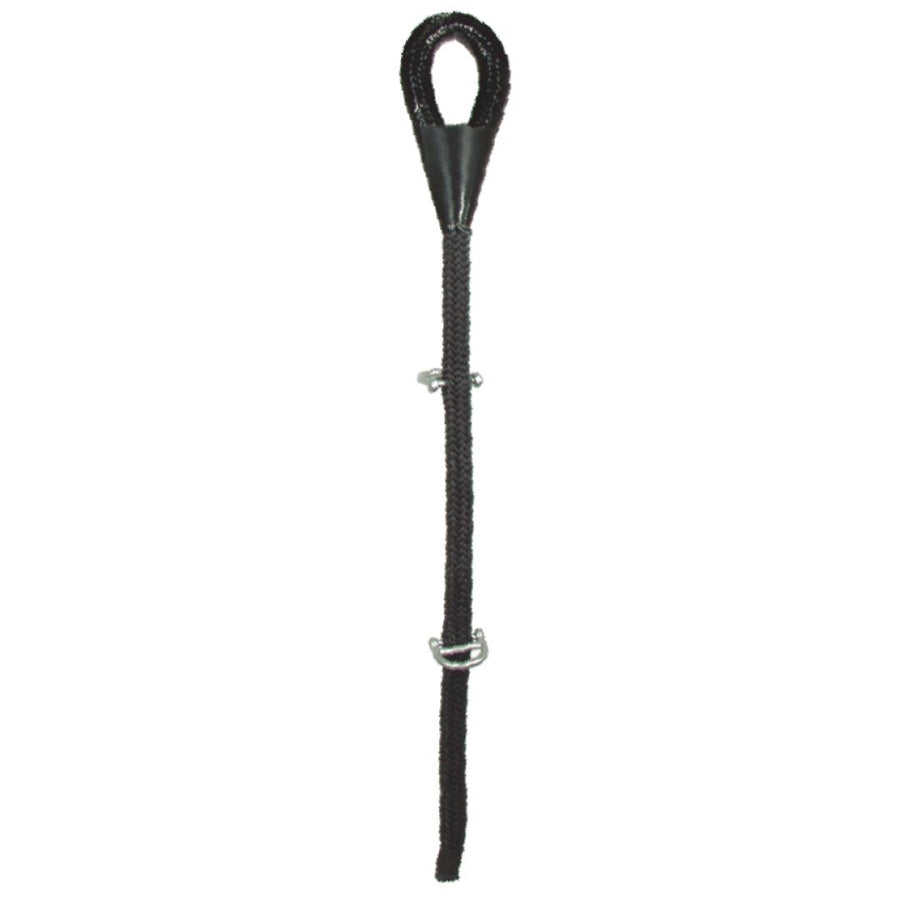

Black SPIE rope with abrasion-resistant coating, featuring high-strength D-rings and robust nylon construction for maximum durability. (8745383624941)
U.S. Marine and military working dog tandem on a SPIE line under a helicopter, showing the SPIE system's ability to safely extract both personnel and animals. (8745383624941)
White SPIE rope coiled and ready for use, showing the durable construction and 10 D-ring attachment points for personnel extraction. (8745383624941)
U.S. Marines suspended on a SPIE rope under a helicopter, demonstrating a fast and efficient extraction operation in action. (8745383624941)
Detailed diagram of a SPIE rope, highlighting the positions of D-rings and the tapered eye splices for secure helicopter attachment. (8745383624941)
WET SPIE extraction of Marines from the water, showcasing the SPIE rope's capability for maritime extraction operations. (8745383624941)
U.S. Marines in camouflage with SPIE rope over their shoulders, fully equipped and waiting for extraction, demonstrating readiness and versatility. (8745383624941)
Black SPIE rope with abrasion-resistant coating, featuring high-strength D-rings and robust nylon construction for maximum durability. (8745383624941)
U.S. Marine and military working dog tandem on a SPIE line under a helicopter, showing the SPIE system's ability to safely extract both personnel and animals. (8745383624941)

SPIE Ropes with 10 D-Rings (120 FT & 150 FT)

Color White
Length 120 FT

Item is in stock Only 0 left in stock Item is out of stock Item is unavailable

Lead Time: Reserve Now, Ships in 12-15 Weeks

SPIE rope configurations for professional procurement

The listed Special Patrol Insertion/Extraction rope options are 120 feet in natural color and 150 feet in black. Each assembly has ten D-ring attachment points and tapered eye splices.

Before you order

Review the exact assembly's specifications, inspection records and manufacturer documentation with qualified personnel. Proof-test and breaking-strength values are not interchangeable with an operational working load limit. This product page does not replace training or approved operating procedures.

Specifications

  • D-Ring Strength: Proof tested at 2,500 lbf
  • Rope Strength: Proof tested at 10,000 lbf; Braided eye splice strength 29,000 lbf
  • Construction: 1.75 inch (44mm) diameter with a nylon solution coating for abrasion protection
  • D-Ring Configuration: Ten D-rings per line for personnel attachment
  • D-Ring Spacing: Five pairs of D-rings starting 7 feet from the running end, spaced 1 foot apart
