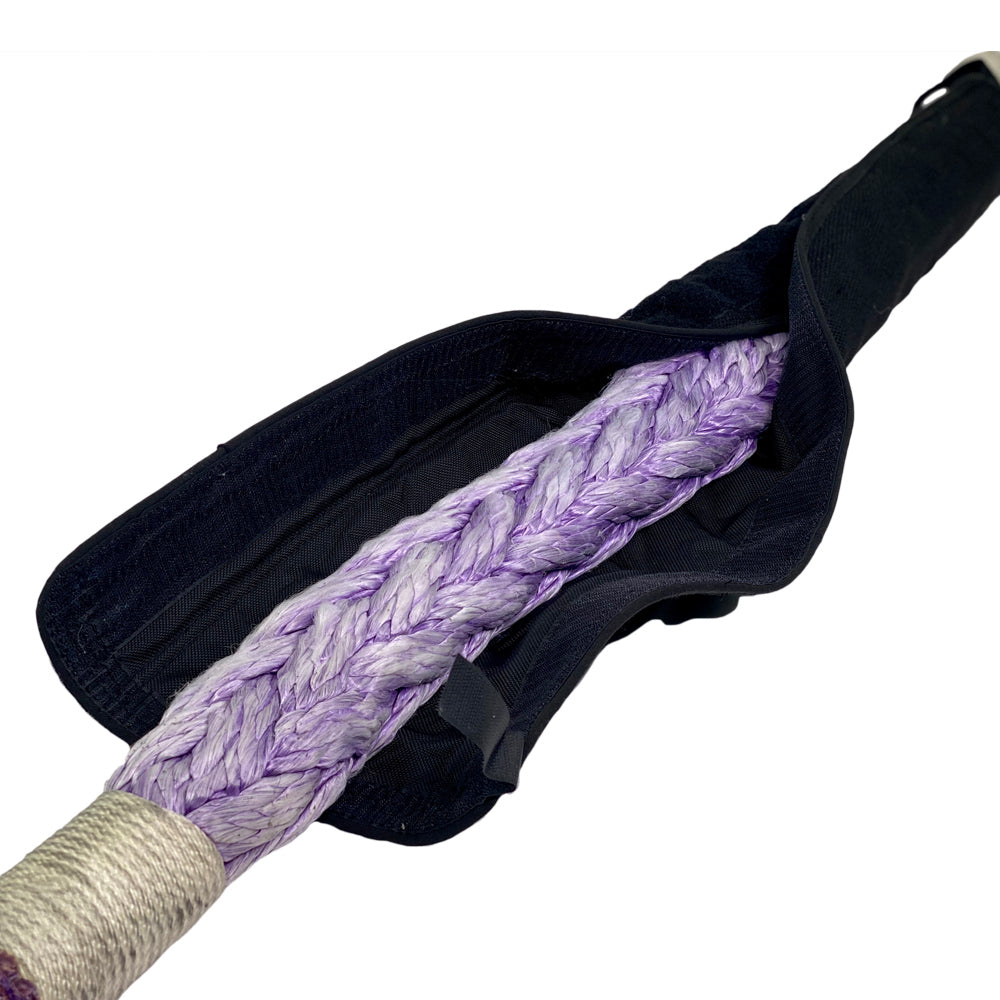

Plasma 12 x 12 Mooring Lines Lifting Ropes Winches Pulling Offshore Oil & Gas Windmills ATV Jeep Chafe Protection (4563252281434)

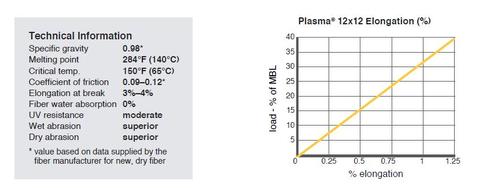

Plasma 12 x 12 Mooring Lines Lifting Ropes Winches Pulling Offshore Oil & Gas Windmills ATV Jeep Elongation Chart (4563252281434)

HMPE 12x12 Rope

Email for quote

Email us to receive a custom quote

An agent will get back to you within 24hrs.

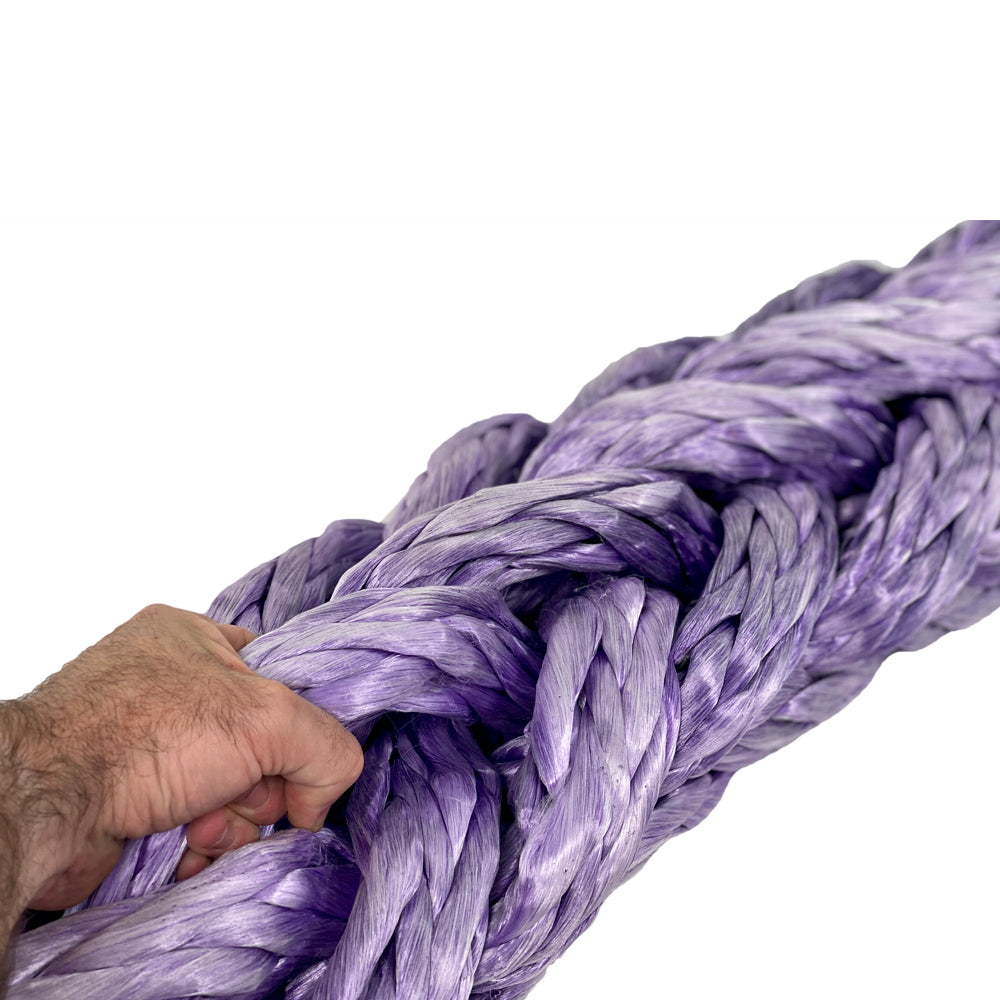

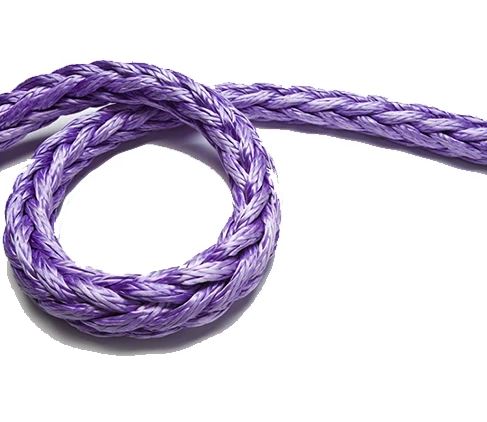

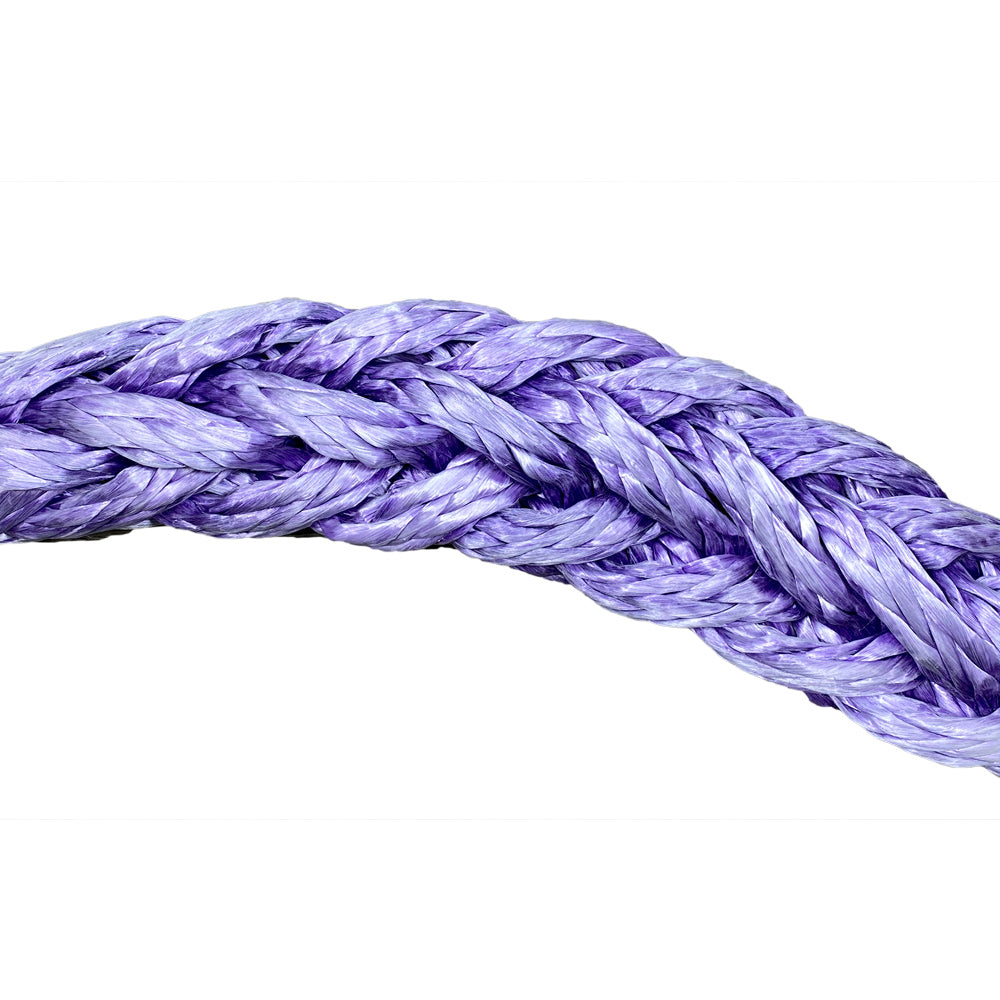

HMPE 12x12 is a 12-strand braided rope in which each of the 12 strands is, in turn, a 12-strand rope, or braided primary strand. Plasma is manufactured from High Modulus Polyethylene (HMPE) that has been enhanced by a patented recrystallization process.

This patented construction addresses the most critical properties of the fibers to provide a very high strength translation efficiency for larger ropes. This design allows for long lay lengths, making rope that is more flexible for bending applications, easy to inspect and can be quickly spliced using standard 12 strand splicing techniques. HMPE 12x12 is supplied with our standard polyurethane finish, although other coatings can be applied to suit specific applications.

Benefits / Features
  • World's strongest rope for its weight
  • Long lengths available
  • High flex fatigue and abrasion resistance
  • Easy to splice, inspect, and repair
  • Neutrally buoyant in water
  • Select sizes are ABS & DNV type approved

Tech Sheet - 12X12

Nominal Dia. (mm)  Nominal Dia. (in)

Rope Circ.

Approx Weight lbs./100 ft

Approx Weight kg / 100m

Min Tensile Strength Spliced Rope (lbs.)

Min Tensile Strength Spliced Rope MT (tonnes)

Min Tensile Strength ISO Unspliced Rope (lbs.)

Min Tensile Strength ISO Unspliced Rope MT (tonnes)

40 mm 1-5/8" 5" 66 98 291,000 132 323,300 147
44 mm 1-3/4" 5-1/2" 78 117 314,000 142 348,900 158
48 mm 2" 6" 91 136 355,000 161 392,450 178
52 mm 2-1/8" 6-1/2" 109 162 428,000 194 475,600 216
56 mm 2-1/4" 7" 122 182 481,000 218 534,400 242
60 mm 2-1/2" 7-1/2" 148 220 530,000 240 588,900 267
64 mm 2-5/8" 8" 167 249 596,000 270 662,200 300
68 mm 2-3/4" 8-1/2" 187 278 660,000 299 733,300 333
72 mm 3" 9" 214 319 780,000 354 866,700 393
76 mm 3-1/8" 9-1/2" 235 350 850,000 386 944,400 428
80 mm 3-1/4" 10" 261 388 940,000 426 1,045,400 474
84 mm 3-1/2" 10-1/2" 298 443 1,108,000 503 1,231,000 559
88 mm 3-5/8" 11" 324 482 1,250,000 567 1,388,900 630
92 mm 3-3/4" 11-1/2" 343 510 1,317,000 598 1,463,000 664
96 mm 4" 12" 394 586 1,520,000 690 1,689,000 766
100 mm 4-1/8" 12-1/2" 457 679 1,622,000 736 1,802,000 818
104 mm 4-1/4" 13" 514 765 1,697,000 770 1,886,000 856
108 mm 4-1/2" 13-1/2" 530 789 1,827,000 829 2,030,000 921
112 mm 4-5/8" 14" 546 812 1,880,000 853 2,089,000 948
116 mm 4-3/4" 14-1/2" 587 873 1,927,000 874 2,141,000 971
120 mm 5" 15" 606 902 2,069,500 939 2,299,000 1043
124 mm 5-1/8" 15-1/2" 657 978 2,212,000 1004 2,458,000 1115
128 mm 5-1/4" 16" 703 1046 2,355,000 1069 2,617,000 1187
132 mm 5-1/2" 16-1/2" 749 1114 2,497,500 1133 2,775,000 1259
136 mm 5-5/8" 17" 813 1210 2,640,000 1198 2,933,000 1331
140 mm 5-3/4" 17-1/2" 871 1296 2,782,500 1262 3,092,000 1403
144 mm 6" 18" 932 1386 2,925,000 1327 3,250,000 1475
148 mm 6-1/8" 18-1/2" 985 1465 3,068,000 1392 3,409,000 1547
152 mm 6-1/4" 19" 1038 1545 3,210,500 1457 3,567,000 1618
156 mm 6-1/2" 19-1/2" 1103 1642 3,353,000 1521 3,726,000 1691
160 mm 6-5/8" 20" 1159 1725 3,496,000 1586 3,884,000 1762
164 mm 6-3/4" 20-1/2" 1227 1827 3,638,500 1651 4,043,000 1834
168 mm 7" 21" 1284 1911 3,781,000 1716 4,201,000 1906
172 mm 7-1/8" 21-1/2" 1334 1986 3,963,500 1798 4,404,000 1998
176 mm 7-1/4" 22" 1392 2072 4,066,000 1845 4,518,000 2050
180 mm 7-1/2" 22-1/2" 1452 2161 4,209,000 1910 4,677,000 2122
184 mm 7-5/8" 23" 1527 2272 4,351,500 1974 4,835,000 2194
188 mm 7-3/4" 23-1/2" 1589 2365 4,494,000 2039 4,993,000 2265
192 mm 8" 24" 1653 2459 4,637,000 2104 5,152,000 2338
196 mm 8-1/8" 24-1/2" 1732 2578 4,779,000 2168 5,310,000 2409
200 mm 8-1/4" 25" 1798 2677 4,922,000 2233 5,469,000 2481


Description

HMPE 12x12 is a 12-strand braided rope in which each of the 12 strands is, in turn, a 12-strand rope, or braided primary strand. Plasma is manufactured from High Modulus Polyethylene (HMPE) that has been enhanced by a patented recrystallization process.

This patented construction addresses the most critical properties of the fibers to provide a very high strength translation efficiency for larger ropes. This design allows for long lay lengths, making rope that is more flexible for bending applications, easy to inspect and can be quickly spliced using standard 12 strand splicing techniques. HMPE 12x12 is supplied with our standard polyurethane finish, although other coatings can be applied to suit specific applications.

Benefits / Features
  • World's strongest rope for its weight
  • Long lengths available
  • High flex fatigue and abrasion resistance
  • Easy to splice, inspect, and repair
  • Neutrally buoyant in water
  • Select sizes are ABS & DNV type approved

Specifications

Tech Sheet - 12X12

Nominal Dia. (mm)  Nominal Dia. (in)

Rope Circ.

Approx Weight lbs./100 ft

Approx Weight kg / 100m

Min Tensile Strength Spliced Rope (lbs.)

Min Tensile Strength Spliced Rope MT (tonnes)

Min Tensile Strength ISO Unspliced Rope (lbs.)

Min Tensile Strength ISO Unspliced Rope MT (tonnes)

40 mm 1-5/8" 5" 66 98 291,000 132 323,300 147
44 mm 1-3/4" 5-1/2" 78 117 314,000 142 348,900 158
48 mm 2" 6" 91 136 355,000 161 392,450 178
52 mm 2-1/8" 6-1/2" 109 162 428,000 194 475,600 216
56 mm 2-1/4" 7" 122 182 481,000 218 534,400 242
60 mm 2-1/2" 7-1/2" 148 220 530,000 240 588,900 267
64 mm 2-5/8" 8" 167 249 596,000 270 662,200 300
68 mm 2-3/4" 8-1/2" 187 278 660,000 299 733,300 333
72 mm 3" 9" 214 319 780,000 354 866,700 393
76 mm 3-1/8" 9-1/2" 235 350 850,000 386 944,400 428
80 mm 3-1/4" 10" 261 388 940,000 426 1,045,400 474
84 mm 3-1/2" 10-1/2" 298 443 1,108,000 503 1,231,000 559
88 mm 3-5/8" 11" 324 482 1,250,000 567 1,388,900 630
92 mm 3-3/4" 11-1/2" 343 510 1,317,000 598 1,463,000 664
96 mm 4" 12" 394 586 1,520,000 690 1,689,000 766
100 mm 4-1/8" 12-1/2" 457 679 1,622,000 736 1,802,000 818
104 mm 4-1/4" 13" 514 765 1,697,000 770 1,886,000 856
108 mm 4-1/2" 13-1/2" 530 789 1,827,000 829 2,030,000 921
112 mm 4-5/8" 14" 546 812 1,880,000 853 2,089,000 948
116 mm 4-3/4" 14-1/2" 587 873 1,927,000 874 2,141,000 971
120 mm 5" 15" 606 902 2,069,500 939 2,299,000 1043
124 mm 5-1/8" 15-1/2" 657 978 2,212,000 1004 2,458,000 1115
128 mm 5-1/4" 16" 703 1046 2,355,000 1069 2,617,000 1187
132 mm 5-1/2" 16-1/2" 749 1114 2,497,500 1133 2,775,000 1259
136 mm 5-5/8" 17" 813 1210 2,640,000 1198 2,933,000 1331
140 mm 5-3/4" 17-1/2" 871 1296 2,782,500 1262 3,092,000 1403
144 mm 6" 18" 932 1386 2,925,000 1327 3,250,000 1475
148 mm 6-1/8" 18-1/2" 985 1465 3,068,000 1392 3,409,000 1547
152 mm 6-1/4" 19" 1038 1545 3,210,500 1457 3,567,000 1618
156 mm 6-1/2" 19-1/2" 1103 1642 3,353,000 1521 3,726,000 1691
160 mm 6-5/8" 20" 1159 1725 3,496,000 1586 3,884,000 1762
164 mm 6-3/4" 20-1/2" 1227 1827 3,638,500 1651 4,043,000 1834
168 mm 7" 21" 1284 1911 3,781,000 1716 4,201,000 1906
172 mm 7-1/8" 21-1/2" 1334 1986 3,963,500 1798 4,404,000 1998
176 mm 7-1/4" 22" 1392 2072 4,066,000 1845 4,518,000 2050
180 mm 7-1/2" 22-1/2" 1452 2161 4,209,000 1910 4,677,000 2122
184 mm 7-5/8" 23" 1527 2272 4,351,500 1974 4,835,000 2194
188 mm 7-3/4" 23-1/2" 1589 2365 4,494,000 2039 4,993,000 2265
192 mm 8" 24" 1653 2459 4,637,000 2104 5,152,000 2338
196 mm 8-1/8" 24-1/2" 1732 2578 4,779,000 2168 5,310,000 2409
200 mm 8-1/4" 25" 1798 2677 4,922,000 2233 5,469,000 2481
