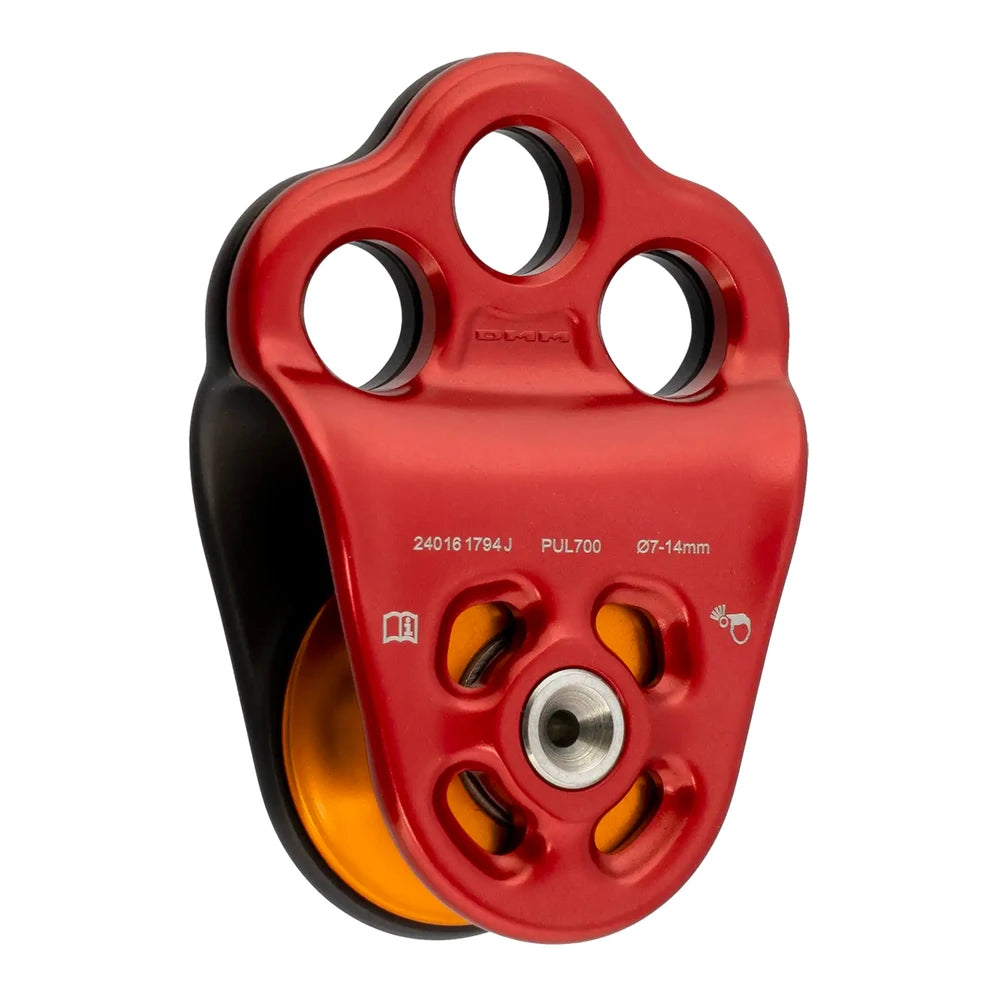

DMM Triple Attachment Pulley 2 in red, PUL700RD, with three attachment holes and gold sheave

DMM Triple Attachment Pulley 2 - Red

商品有库存 库存仅剩0 商品缺货 商品不可用

Lead Time: Available to order. Estimated dispatch: 1–3 business days.

The DMM Triple Attachment Pulley 2 has three attachment holes and a fixed side-plate layout for compatible rope systems. The space above its 42 mm sheave allows multiple connection arrangements, while sealed bearings support smooth rotation.

Specifications

  • Model: PUL700RD; color: red
  • Net product weight: 150 g
  • Body dimensions: 94 × 68 × 33 mm
  • Maximum rope diameter: 14 mm
  • Sheave diameter: 42 mm
  • Minimum breaking strength: 30 kN
  • Working load limit: 6 kN
  • Standard: EN 12278:2007

Ordering and dispatch

Available to order. Estimated dispatch: 1–3 business days. Dispatch is an estimate, not a delivery date, and depends on availability. Shipping is available to contiguous-U.S. street addresses only; no PO boxes, APO or FPO addresses. For more than three units, or a mixed order without an available checkout shipping option, contact Ravenox for a shipping quote before ordering.

Use and inspection

For trained, competent users working within a compatible system. Ratings depend on loading configuration. Read and retain the official DMM pulley instructions and follow the manufacturer’s requirements for compatibility, loading, inspection and retirement before use.
